 Note
-
| |
The removal and installation sequence is only for the
left window channel. Removal and installation of the right
window channel are similar. |
-
| |
Do not bend window channel when removing! |
|
|
|
| – |
Remove inner window slot seal
→ Chapter. |
| – |
Remove window slot outer seal
→ Chapter. |
| – |

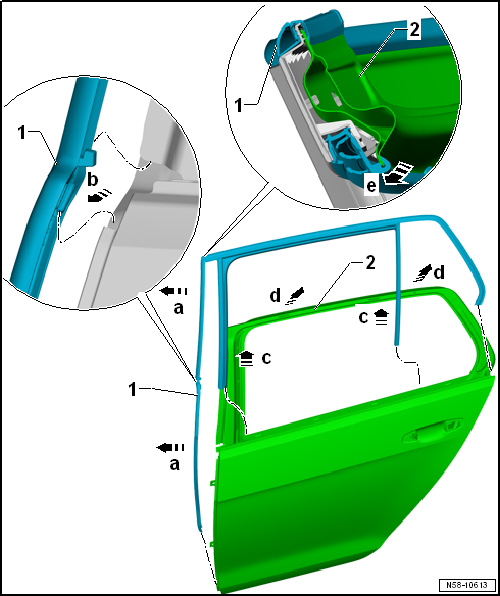

Peel sealing lip of window channel -1-
off the door flange -2- from the inside
-arrow e-. |
| – |
Pull window channel -1- out of
mountings on door -arrows c-. |
| – |
Pull window channel of front metal flange
-arrows a- and in area of overlap out of holding device
-arrow b-. |
| – |
Pull window channel -1--arrows c- off
flange -2- uniformly all around it. |
| – |
Spray window channel with soapy water to facilitate installation. |
| – |

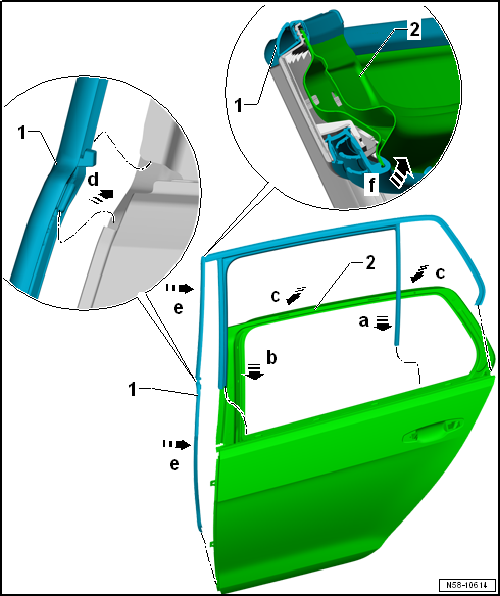

Insert window channel -1- into
mountings on door -arrows a and b-. |
| – |
Insert window channel at front flange into holding device
-arrow d- and fit onto metal flange
-arrows e-. |
| – |
Push window channel -1- from rear
towards front onto door flange -2--arrows c-. |
| – |
Fold sealing lip of window channel onto door flange from the inside
-arrow f-. |
Note
| To prevent wind noise, ensure window channel
-1- seats evenly when installing. |
| Further installation is performed in the reverse order of
removal. |
