Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing impact bar

This page covers removing the Volkswagen Golf Mk7 rear impact bar, including R-Line and R variants: remove the bolts, then lift the bar upward out of the tabs in the cross panel.


Volkswagen R GmbH, optional equipment, “R Line” and “R”
Removing


Removing and installing impact bar

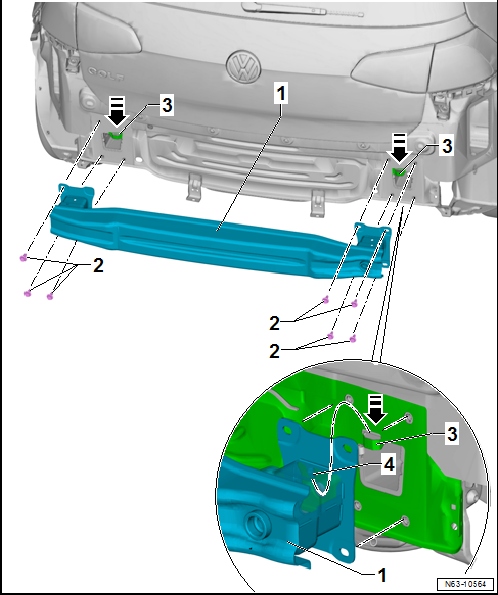

–  Remove bolts -2-.
–  Lift impact bar -1- upwards -arrows- out of tabs -3- in cross panel.


Installing


Removing and installing impact bar

–  Guide guides -4- of impact bar -1- from top to bottom -arrows- into tabs -3- in cross panel.
–  Tighten bolts -2-.
Specified torques
  → Chapter „Assembly overview - impact bar“

Repairing bumper cover

Note

If bumper cover is damaged, determine whether plastic can be repaired before renewing bumper.

Description under: → General Information; Body Repairs, General Body Repairs
