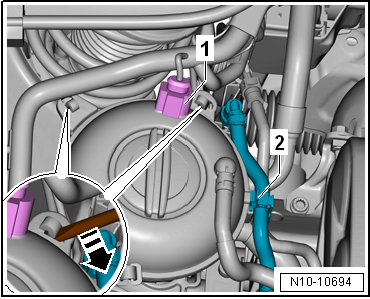

Disconnect electrical connector -1-. |
|
|
|
| – |
Move clear hose -2- from
activated charcoal filter. |
| – |
Using a screwdriver, release fasteners
-arrow- and move coolant expansion tank to one side. |
| – |
Supporting engine in installation position
→ Chapter „Supporting engine in installation position“ |
|
|
|
| – |

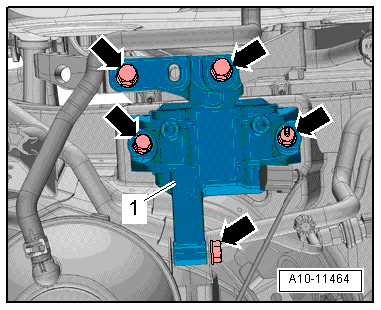

Unscrew bolts -arrows- and
remove engine mounting -1-. |
| Installation is carried out in the reverse order; note the
following: |
| – |
Checking adjustment of assembly mountings
→ Chapter. |
| → Chapter „Assembly overview - assembly mountings“ |
|
|
|
Questions & answers
Removing and installing engine mountings — Volkswagen Golf Mk7
How do I remove the Golf Mk7 1.4 TSI engine mount?
Support the engine with -VAS 6095-, unbolt the mount from the body bracket and engine bracket, and remove.
Special tools and workshop equipment
required
Support bracket -10 - 222 A-
...
Removing
–
Release hose clips -1- and
-2-, and remove air pipe.
– ...
