Using hose clamps -3094- and hose clip pliers -VAS 6362-, this page covers removing the e-Golf/ GTE HV battery coolant pump -V590- — observing cooling system safety precautions first.
| Special tools and workshop equipment
required |
|
|
|

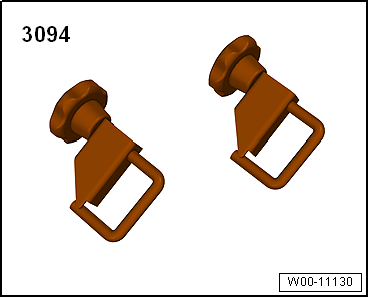

| Hose clamps, up to 25 mm -3094- |
|
|
|

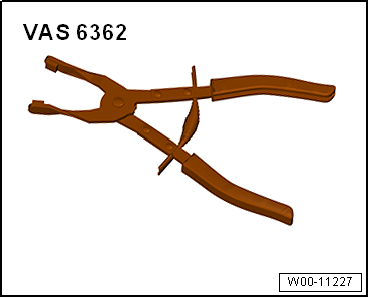

| Hose clip pliers -VAS 6362- |
| – |
Observe safety precautions
→ Chapter „Safety precautions when working on the cooling
system“. |
| – |
Remove noise insulation
→ General body repairs, exterior; Rep. gr.66. |
|
|
|
| – |

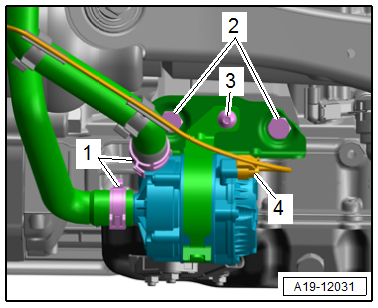

Disconnect electrical connector -4-. |
When the engine is warm, the cooling system is under pressure. Danger of
scalding due to steam and hot coolant. There is a risk of injury to the
skin and parts of the body due to scalding.Always wear safety
gloves.Always wear safety goggles.Proceed as follows to release the
pressure: cover the cap of the coolant expansion tank with a cloth, and
open it carefully.
| – |
Clamp off coolant hoses using hose clamps -3094-, and remove
coolant hoses. To do this, release hose clips
-1-. |
| – |
Unscrew bolt -3-, and coolant
pump for high-voltage battery -V590-. |
| Installation is carried out in the reverse order. When
installing, note the following: |
 Note
| Secure hose connections with hose clips corresponding to the
standard version of the equipment
→ Electronic Parts Catalogue. |
| – |
Check coolant level
→ Rep. gr.19. |
| → General body repairs, exterior; Rep. gr.66 |
|
|
|
