Volkswagen Golf Mk7 Service & Repair Manual: Dimensions - lettering on rear lid, “GTI/GTD”

This page gives the exact placement dimensions for GTI/GTD model lettering on the rear lid — 75.5 ± 1 mm from the lower edge to the tail light, and 26.5 ± 1 mm horizontally from the rear lid's outer edge.

  Note

When fitting the lettering, observe the fitting notes → Anchor.

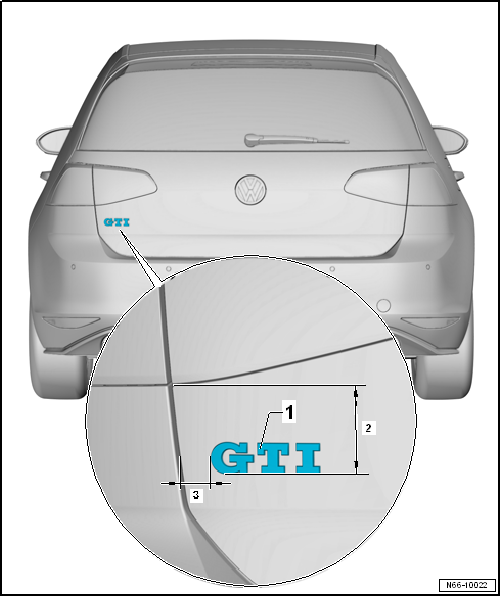

1 -

Lettering

• Model designation

2 -	Height dimension

• 75.5 ± 1 mm, from lower edge of lettering to tail light.

3 -	Horizontal dimension

• 26.5 ± 1 mm, from outer edge of rear lid to lettering
