Using counterhold -T10172- with adapter -T10172/2-, this page covers removing the coolant pump toothed belt pulley on CHPA, CMBA, CPVA, CXSA, CZDA, CZCA, CPVB engines — remove the coolant pump first.
| Special tools and workshop equipment
required |
|
|
|

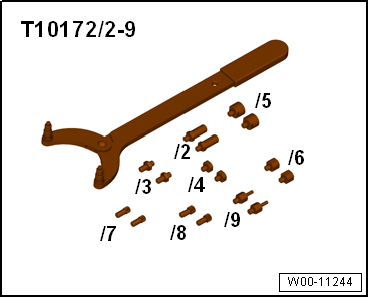

| Counterhold -T10172- with adapter -T10172/2- |
| – |
Remove coolant pump
→ Chapter. |
|
|
|
| – |

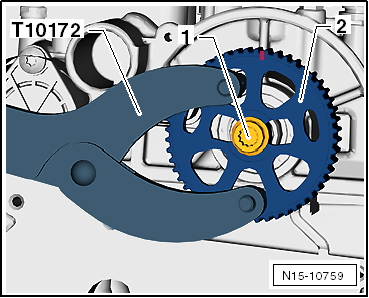

Loosen bolt -1- using
counterhold -T10172- with adapters -T10172/2-. |
| – |
Unscrew bolt and remove toothed belt pulley
-2-. |
| Installation is carried out in the reverse order; note the
following: |
|
|
|
| – |
Fit toothed belt pulley: |

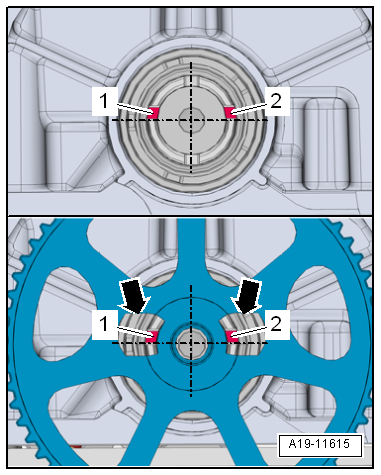

| The grooves -1- and
-2- in the camshaft are arranged
symmetrically. |
| The cut-outs -arrows- in
toothed belt pulley are also arranged asymmetrically. |
| – |
Fit toothed belt pulley onto camshaft so that the
asymmetrical grooves of the camshaft are fully centred within
the cut-outs of the toothed belt pulley. |
| – |
Install coolant pump
→ Chapter. |
| → Chapter „Assembly overview - coolant pump, thermostat“ |
|
|
|
