Note
| Always renew self-locking nuts. |
| Always renew corroded nuts and bolts. |
| Always renew nuts and bolts that have been tightened further by a
set angle. |
| 1 - |
Central pipe of dash panel |
| Loosening and tightening
→ Chapter |
| 4 - |
Electronic steering column lock control unit -J764- |
| For vehicles with keyless entry and start system “Keyless Access” |
| Removing and installing
→ Chapter |
| Observe tightening sequence, LHD
→ Anchor. |
| Observe tightening sequence, RHD
→ Anchor. |
| Removing and installing
→ Chapter |
| When installing, steering column must be engaged at mounting bracket
for central tube for dash panel (assists with installation). |
| Different versions possible. Refer to
→ Electronic Parts Catalogue “ETKA” |
Questions & answers

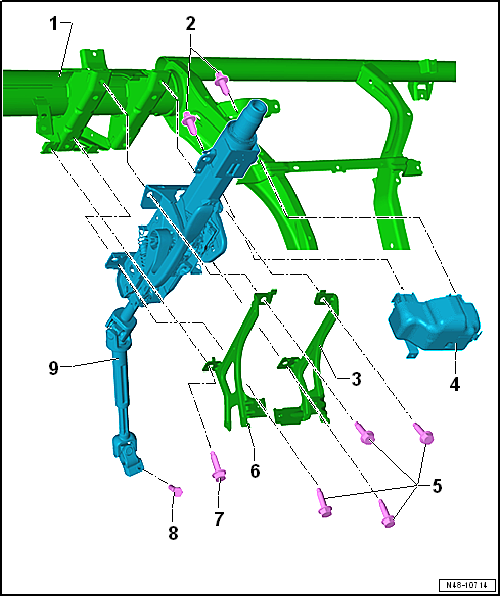

Assembly overview - steering column — Volkswagen Golf Mk7
What does the Golf Mk7 steering column assembly show?
Column tube, universal joint, adjustment lever, lock unit -J764-, intermediate shaft and mounting bolts with torques.
Visual check
–
Check all steering column parts for damage.
Checking function
–
Ch ...
