Shown for a left-hand drive vehicle (identical procedure for RHD), this page covers removing the Volkswagen Golf Mk7 air intake duct — remove the dash panel central tube first.
 Note

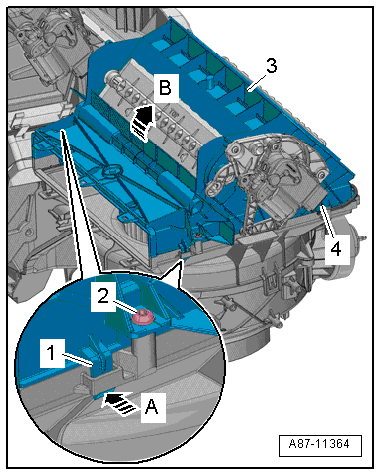

| The illustration shows a left-hand drive vehicle. The
removal and installation procedure is identical for both
versions. |
|
|
|
| – |
Remove dash panel central tube
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove dust and pollen filter
→ Chapter. |
| – |
Disconnect electrical connector -4-
and lay wiring harness to one side. |
| – |
Loosen heater and air conditioning unit and pull it slightly
towards front. |
| – |
Release retaining tab -1--arrow A-. |
| – |
Swivel the air intake housing -3-
upwards -arrow B- and disengage. |
| Install in reverse order. |
| → Chapter „Assembly overview - add-on parts of heater and air
conditioning unit and of air intake box“ |
|
|
|
