Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - luggage compartment side trim, saloon
This assembly overview covers the Volkswagen Golf Mk7 saloon luggage compartment side trim, left side shown (right is a mirror image), including the tie-down ring with its own removal procedure.

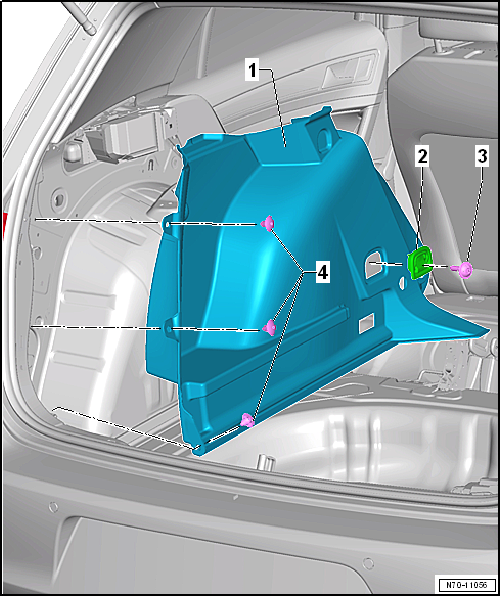

Note| The illustration shows the luggage compartment side trim on the left side. The right-hand side is similar (mirror image of left-hand side). |
| 1 - | Luggage compartment side trim |
- Removing and installing → Chapter
| 2 - | Tie-down ring |
- Removing and installing → Chapter
| 3 - | Bolt |
- 8 Nm
| 4 - | Clip |
- Qty. 3
- Renew clip if damaged or deformed
