 Note
| The cover cap is installed when no lock cylinder is fitted. |
| Special tools and workshop equipment
required |
|
|
|
| |
|
Assembly tool -T10389- |
| – |

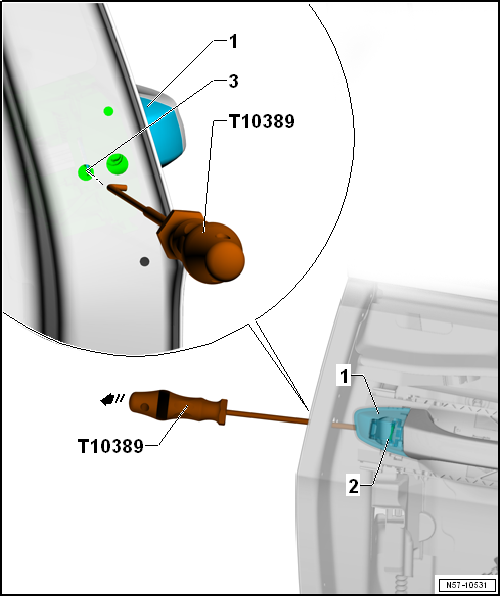

Insert assembly tool -T10389- approx. 44 mm into the door behind
locking hook -2- of the door handle
bracket. |
| – |
Pull assembly tool -T10389- approx. 5 mm backwards
-arrow- until hook is detached. |
| – |

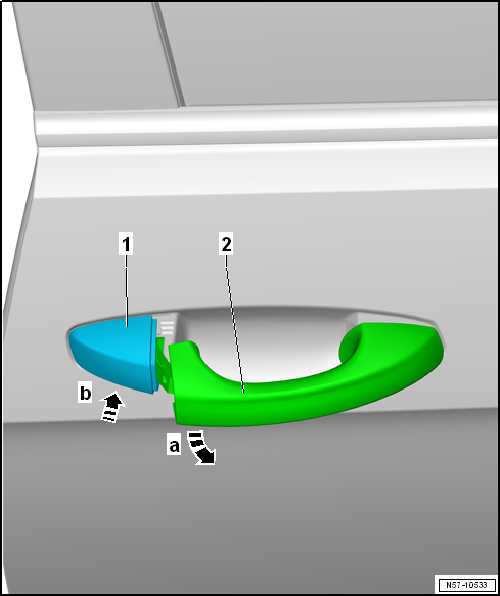

Pull door handle -1- off door
-arrow a-. |
| – |
Pull cover cap -1- out of mounting
bracket -arrow b-. |
| – |
Pull door handle -2- off door in
direction of -arrow a-. |
| – |
Push cover cap -1- into mounting
bracket -arrow b-. |
| – |
Slightly press cover cap -1- onto door. |
| – |

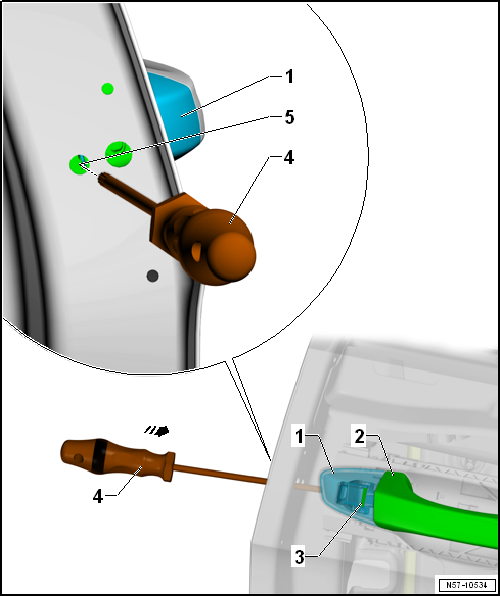

Insert flat-bladed screwdriver -4-
approx. 40 mm into door handle bracket until locking hook
-3- is reached. |
| – |
Press cap -1- onto door. |
| – |
Push screwdriver approx. 5 mm into hole
-arrow- until hook locks in place -3-. |
Questions & answers
Removing and installing cover cap, without lock cylinder — Volkswagen Golf Mk7
What is the blank cover cap on the Golf Mk7 door handle?
On doors without a mechanical lock cylinder, a blank cap fills the space. It is removed using assembly tool -T10389-.
How do I remove the Golf Mk7 blank door handle cap?
Remove the plugs, insert assembly tool -T10389- approximately 44 mm behind the locking hook, and press to release the cap.
