Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - fuel rail with injectors

This assembly overview covers the Volkswagen Golf Mk7 fuel rail with injectors: the fuel pressure sender -G247- — lightly lubricate its taper (not the thread) and torque to 22 Nm.

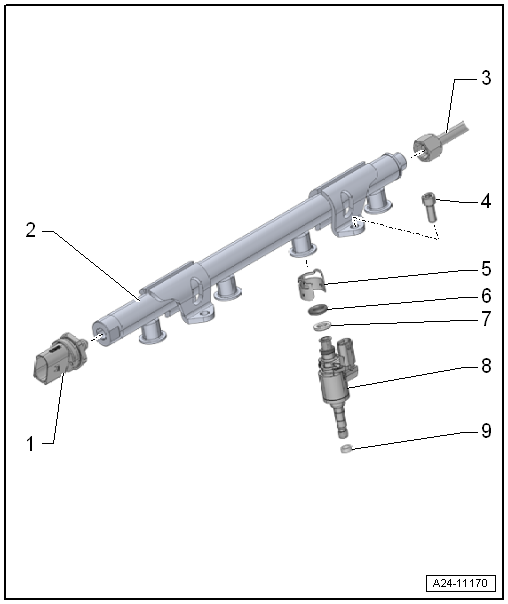

Assembly overview - fuel rail with injectors

1 -  Fuel pressure sender -G247-
Checking → Chapter
Removing and installing → Chapter
Lubricate taper lightly with clean engine oil; do not lubricate thread
22 Nm
2 -  Fuel rail
Removing and installing → Chapter
3 -  High-pressure pipe
The fuel system is under high pressure.Risk of injury due to fuel which may spurt out.Release high pressure.
→ Chapter
Unions must not show any signs of damage
Do not alter shape
Removing and installing → Chapter
25 Nm
4 -  Bolt
Removing and installing → Chapter
9 Nm
5 -  Support ring
Renew
Fuel rail exerts force which secures injector in cylinder head via this support ring
Clipped to -item 8-
6 -  O-ring
Renew
Lubricate with clean engine oil.
7 -  Spacer ring
Renew if damaged
8 -  Injector
Removing and installing → Chapter „Removing and installing injectors“
9 -  Combustion chamber seal
Do not treat with grease or other lubricant.
Renew → Chapter „Removing and installing injectors“
