Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing fuel pressure sender -G247-

Using assembly tool -T10118- and 27 mm socket -T40218-, this page covers removing the Volkswagen Golf Mk7 fuel pressure sender -G247- — disconnect the electrical connector first.

Special tools and workshop equipment required

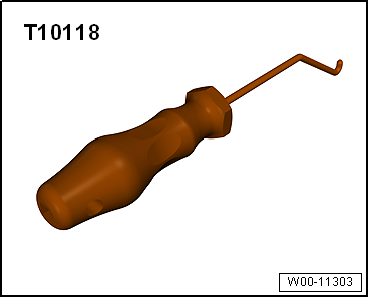

Assembly tool -T10118-

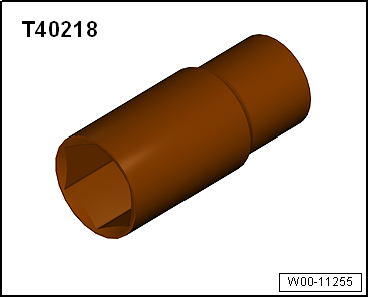

Socket, 27 mm -T40218- or commercially available 27 mm hexagon socket insert Removing

–  Disconnect electrical connector -1-.   Note Place a cloth underneath to catch escaping fuel. –  Unscrew fuel pressure sender -G247--2- using socket, 27 mm -T40218-. Installing Installation is carried out in the reverse order; note the following:   Note Do not lubricate thread of fuel pressure sender. Specified torques → Chapter „Assembly overview - fuel rail with injectors“

Questions & answers

Removing and installing fuel pressure sender -G247- — Volkswagen Golf Mk7

How do I remove the Golf Mk7 1.4 TSI fuel pressure sender -G247-?

Release fuel pressure first. Disconnect, unbolt and remove. Renew seal ring.
