Using wedges -T10383- and torque wrench -V.A.G 1783-, this page covers removing the Volkswagen Golf Mk7 saloon wheel housing trim on the left side (right is similar), with a variant for vehicles with side padding.
 Note
| Removal and installation are described for the left
vehicle side. Follow same instructions for the right side as
appropriate. |
| Special tools and workshop equipment
required |
|
|
|
| |
|
Wedges -T10383 |
| |
|
Torque wrench -V.A.G 1783- |
| Vehicles with side padding |
| – |
Remove side padding
→ Chapter. |
| Vehicles without side padding |
| – |
Remove bench seat
→ Chapter. |
| Continued for all vehicles |
| – |
Release sill panel moulding in area of overlap to wheel housing trim
from body and from wheel housing trim
→ Chapter. |
| – |
Fold down rear seat backrest. |
| – |

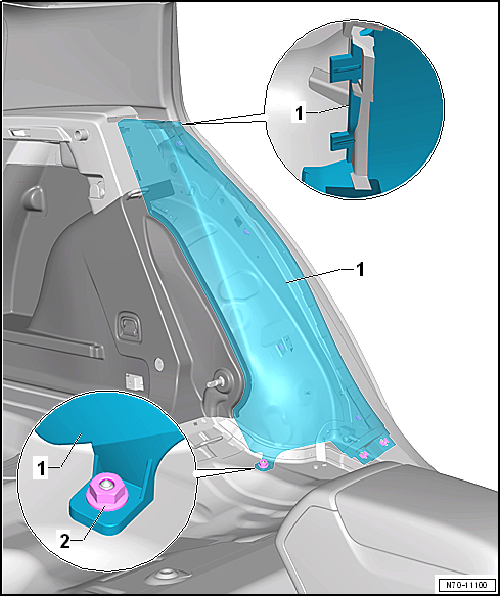

Release wheel housing trim -1- from
C-pillar trim using wedge -T10383-. |
| – |
Release wheel housing trim -1- in area
of retaining clips from body mountings using wedge -T10383-. |
Note
-
| |
Before installing, check all fasteners for damage and
renew if necessary. |
-
| |
Remove any retaining clips left in body mountings
using removal tool -T40280- and fit them in wheel housing
trim for installation. |
-
| |
Following installation, ensure that the wheel housing
trim is positioned in the door seal beading. |
-
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - wheel housing trim“ |
|
