Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing driver side footwell vents, RHD vehicles

WARNING: pyrotechnic components may trigger unintentionally — discharge static from your body first. This page covers removing the RHD Volkswagen Golf Mk7 driver footwell vents, starting with the knee airbag.

Removing
Pyrotechnic components may trigger unintentionally.Risk of injury.Discharge any static charge accumulated in your body by briefly touching striker plate for door.
–  Remove driver side knee airbag → General body repairs, interior; Rep. gr.69.

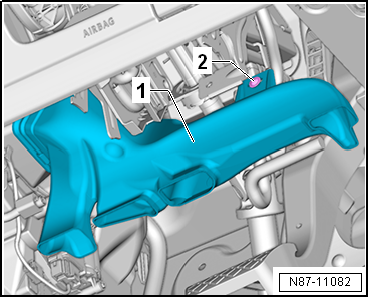

–  Remove bolt -2-.
–  Remove footwell vent on driver side -1-.
Installing
–  Install in reverse order.
Specified torques:


Removing and installing driver side footwell vents, RHD vehicles

Component Specified torque
Self-tapping screw 4.2 x 16 1.5 Nm

Knee airbags; Assembly overview - knee airbag → General body repairs, interior; Rep. gr.69.
