Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - axle beam

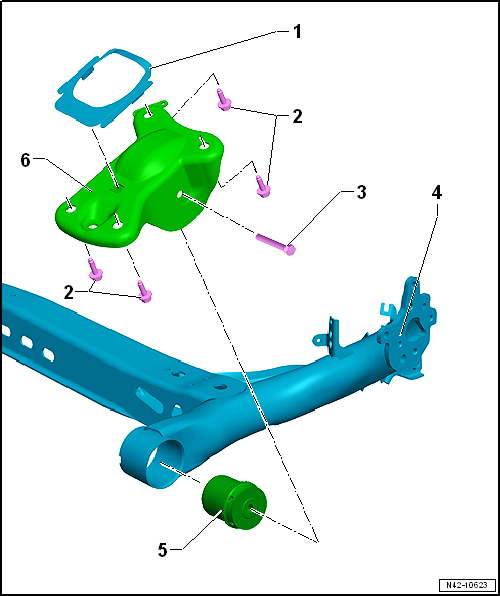

This assembly overview covers the Volkswagen Golf Mk7 torsion beam axle beam: a bolt torqued to 50 Nm plus 45°, and a second bolt at 70 Nm plus 360° — tightened only in the unladen state.
| 1 - | Cover |
| 2 - | Bolt |
| Renew after removing |
| 50 Nm +45° |
| 3 - | Bolt |
| Renew after removing |
| Tighten in unladen state → Chapter. |
| 70 Nm +360° |
| 4 - | Axle beam |
| Removing and installing → Chapter |
| 5 - | Bonded rubber bush |
| Note correct installation position |
| Renewing → Chapter. |
| 6 - | Mounting bracket |
