Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - condenser

This assembly overview covers the Volkswagen Golf Mk7 condenser and receiver, showing the Modine version as the example — different variants exist, cross-referenced to ETKA, with the sealing ring always renewed.

Condenser, receiver
  Note
The illustration shows the Modine condenser.

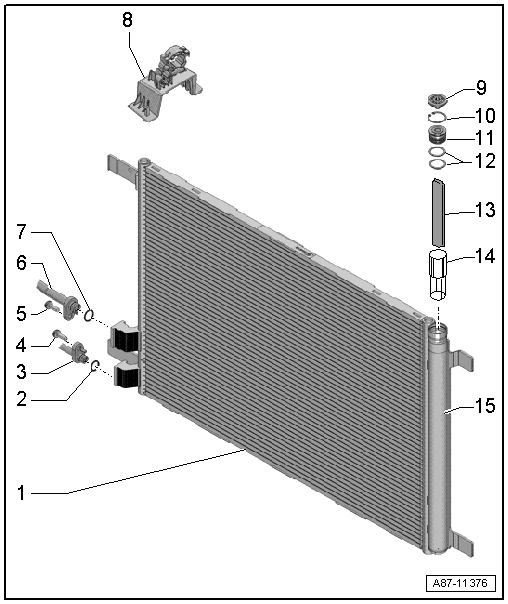

Assembly overview - condenser

1 -  Condenser
Different versions. Refer to → Electronic Parts Catalogue.
Removing and installing → Chapter.
2 -  Sealing ring
Renewing; for versions, refer to → Electronic Parts Catalogue.
Before fitting a seal, coat lightly with refrigerant oil
3 -  Refrigerant line
To internal heat exchanger.
4 -  Bolt
8 Nm
5 -  Bolt
8 Nm
6 -  Refrigerant line
From air conditioner compressor.
7 -  Sealing ring
Renewing; for versions, refer to → Electronic Parts Catalogue.
Before fitting a seal, coat lightly with refrigerant oil
8 -  Bracket
For refrigerant lines.
9 -  Protective cap
Different versions. Refer to → Electronic Parts Catalogue.
Manufacturer Modine : 3 Nm
10 -  Circlip
11 -  Sealing cap
Different versions. Refer to → Electronic Parts Catalogue.
Renew if damaged.
12 -  Sealing ring
Renewing; for versions, refer to → Electronic Parts Catalogue.
Before fitting a seal, coat lightly with refrigerant oil
13 -  Desiccant bag
Different versions. Refer to → Electronic Parts Catalogue.
Removing and installing:
Denso condenser → Chapter.
Modine condenser → Chapter.
Keihin condenser → Chapter.
14 -  Strainer
Different versions. Refer to → Electronic Parts Catalogue.
Removing and installing
Denso condenser → Chapter.
Modine condenser → Chapter.
Keihin condenser → Chapter.
15 -  Receiver
Different versions. Refer to → Electronic Parts Catalogue.
Integrated in condenser for this version.
  Note
Under certain conditions, it is not necessary to renew the receiver with desiccant bag every time that the refrigerant circuit is opened. Refer to ELSA under Heating, ventilation, air conditioning system; Air conditioning system with refrigerant R134a → Air conditioning system with refrigerant R134a; Rep. gr.00.
