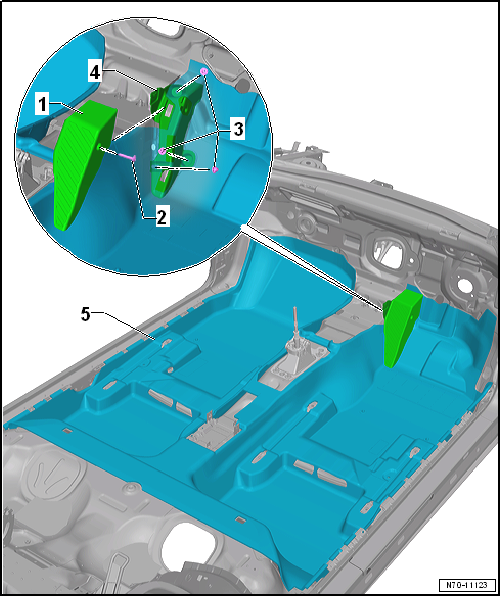

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - foot rest and floor covering, RHD vehicles
This assembly overview covers the RHD Volkswagen Golf Mk7 foot rest and floor covering: a 2 Nm bolt, 3 nuts at 2 Nm, the bracket and the one-piece floor covering.
| 1 - | Foot rest |
- Removing and installing → Chapter
| 2 - | Bolt |
- 2 Nm
| 3 - | Nut |
- Qty. 3
- 2 Nm
| 4 - | Bracket |
- Removing and installing → Chapter
| 5 - | Floor covering |
- One-piece design.
- Removing and installing → Chapter „Removing and installing floor covering“
Questions & answers
Assembly overview - foot rest and floor covering, RHD vehicles — Volkswagen Golf Mk7
What does the Golf Mk7 RHD foot rest assembly show?
Foot rest, bolt (2 Nm), nuts (2 Nm), bracket and floor covering. Mirror image of the LHD layout.
