| Special tools and workshop equipment
required |
|
|
|
|
|
|
Torque wrench -V.A.G 1783- |
| – |
Remove glass panel
→ Chapter. |
| – |
If drive is defective, remove glass panel
→ Chapter. |
| – |

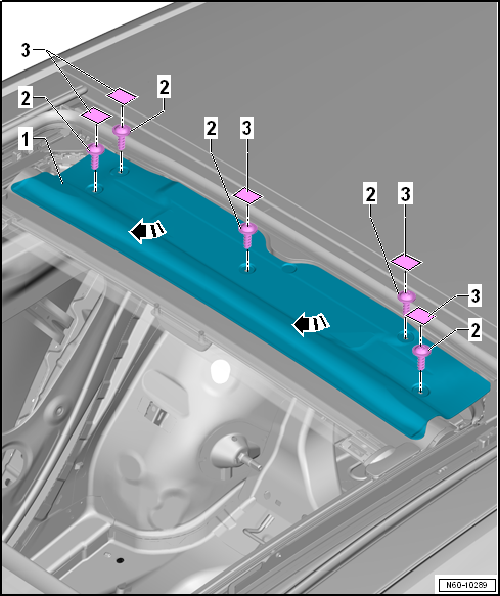

Pull self-adhesive insulation -3- off. |
| – |
Pull out cover upwards at an angle -arrows-. |
| – |
Remove glass panel
→ Chapter. |
| – |

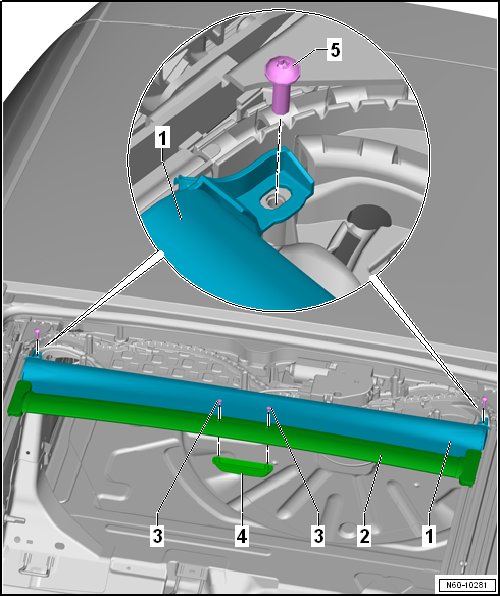

Undo screws -3- and remove handle
-4-. |
Note
-
| |
If the sun blind is to be reused, it is vital to ensure that
the steel strips are not kinked. |
-
| |
If a steel strip is kinked, a new sun blind has to be fitted. |
| – |

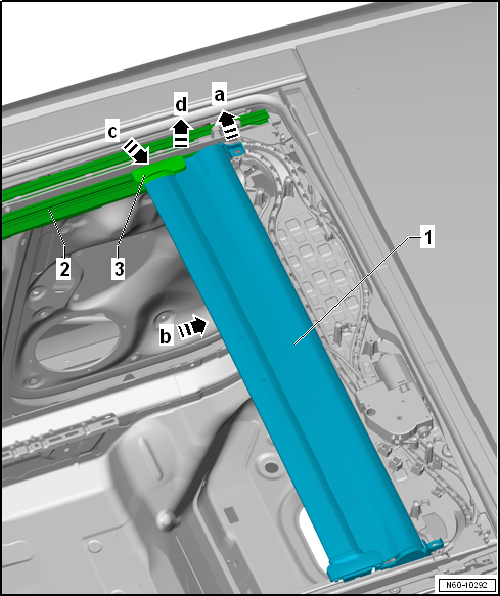

Lift sun blind -1- at rear on right and
left -arrow a- and push uniformly to the
rear -arrow b- and pull out of the guide
rails -3-. |
| – |
Push slider -3- into rib
-arrow c- and remove from guide
-arrow d-. |
| – |
Remove sun blind -1- from assembly
frame. |
| If required for subsequent work, the pulling rib can be removed from
sun blind
→ Anchor. |
Note
-
| |
When installing the sun blind, it is vital to ensure that the
steel strips are not kinked. |
-
| |
If a steel strip is kinked, a new sun blind has to be fitted. |
| l |
Pulling rib is installed
→ Anchor. |
| – |

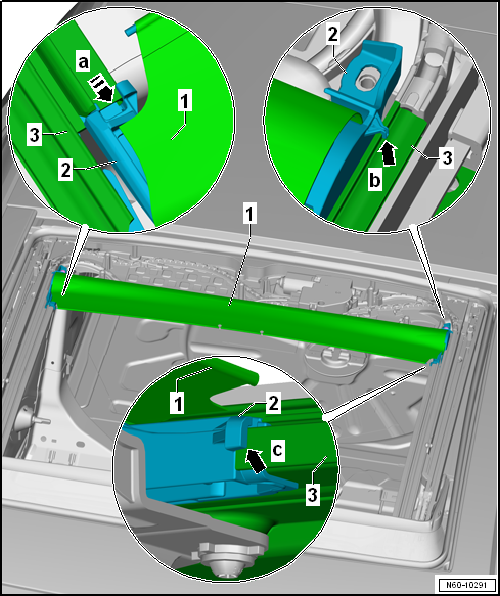

Insert right and left carriers -2- into
guide rails -3--arrow a-. |
| – |
Make sure that carriers are in correct position at top
-arrow b- and bottom
-arrow c- on guide rail. |
| – |

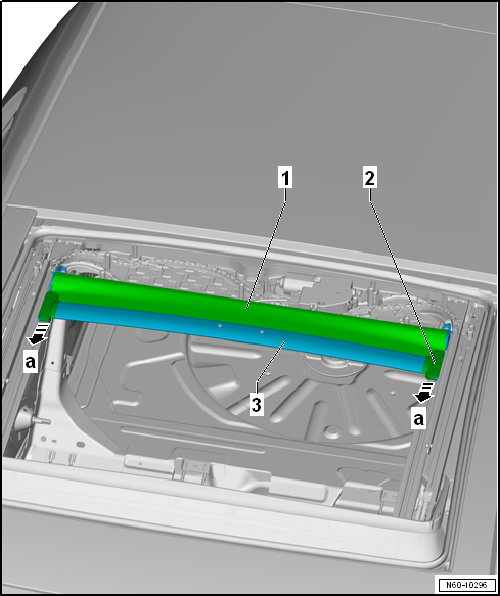

Insert slider -2- into guides
-8--arrows a-. |
| – |
Make sure that the sliders are in correct position in relation to
guide rails. |
| – |
Fit handle -4- and tighten screws
-3-. |
| |
Handle
→ Chapter „Assembly overview - sunroof roller blind“ |
| – |
Push cover onto assembly frame. |
| – |
Attach self-adhesive insulation -3-. |
| |
Cover
→ Chapter „Assembly overview - sliding sunroof“ |
| Removing and installing pulling rib |
|
|
|
| – |
Remove glass panel
→ Chapter. |
| – |
Removing sliding sunroof roller blind
→ Chapter. |
| – |

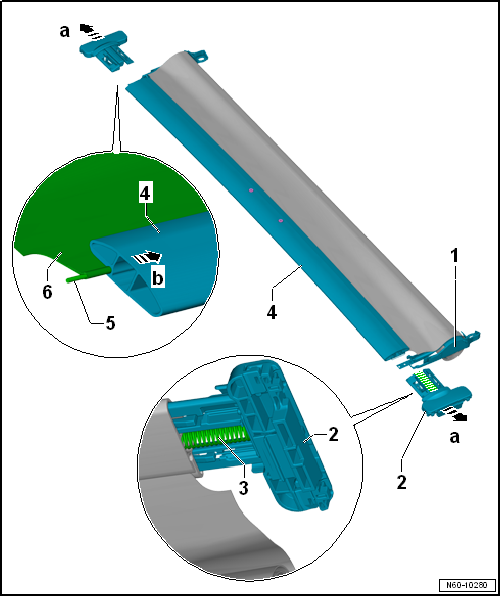

Pull slider -2- on left and right out
of pulling rib -4--arrows a-. |
| – |
Pull pulling rib off fabric of sliding sunroof roller blind
-7--arrow b-. |
| – |
Push tensioning wire -5- into sun blind
fabric -6-. |
| – |
Push pulling rib -4- onto fabric of sun
blind. |
| – |
Push slider -2- with spring
-3- into pulling rib. |
| Further installation is performed in the reverse order of removal. |
