Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing floor covering

This page covers removing the Volkswagen Golf Mk7 full floor covering — a major job requiring both front seats, the rear bench, sill mouldings, lower A-pillar trims, front belt end fittings and the centre console all removed first.

Removing
–  Remove front seats → Chapter.
–  Remove rear bench seat → Chapter.
–  Remove sill panel mouldings → Chapter.
–  Remove lower A-pillar trims → Chapter.
–  Remove front belt end fittings → Chapter.
–  Remove centre console → Chapter.
–  Remove foot rest → Chapter.
–  If fitted, remove rear air duct → Heating, air conditioning; Rep. gr.87.

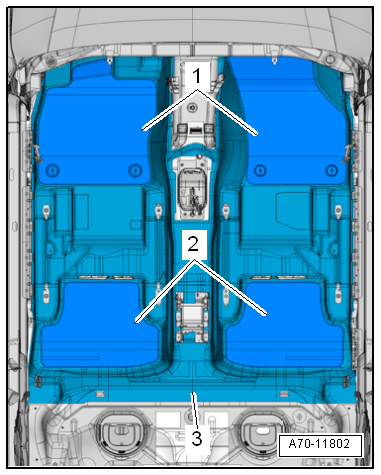

–  Remove floor mats -1 and 2-.
–  Lift floor covering -3- at rear and pull it towards rear.
  Caution
Ensure that the floor covering is not torn in the area of the cut-outs.
–  Fold floor covering together and remove it through front door.
Installing
Installation is carried out in reverse order.


Removing and installing floor covering

    Questions & answers

    Removing and installing floor covering — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 floor covering?
    Remove front seats, rear bench, sill mouldings, lower A-pillar trims and all pedal area covers first. Then lift the carpet out.
