| Special tools and workshop equipment
required |
|
|
|
| Wheel bearing unit is removed. |
|
|
|
| – |

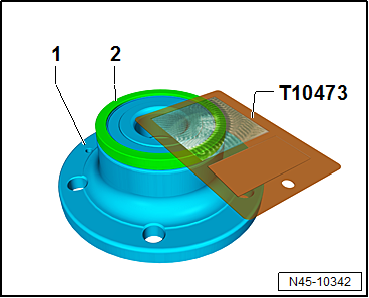

Using sensor gauge -T10473-, check ABS sensor ring
-2- all round, as shown in
illustration. |
| 2 - |
Seal with integrated ABS sensor ring |
|
|
|

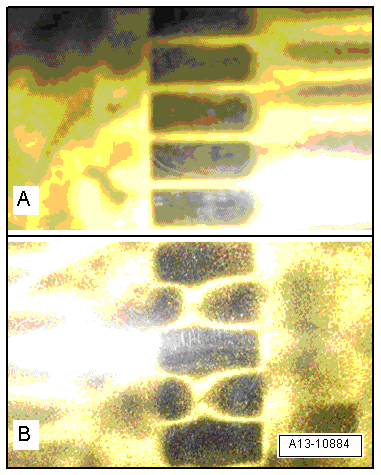

| Test pattern for ABS sensor ring: |
| A - |
ABS sensor ring is OK |
| B - |
ABS sensor ring is defective |
|
|
|
Questions & answers
Checking ABS sensor ring — Volkswagen Golf Mk7
How do I check the Golf Mk7 ABS sensor ring?
The ring is integral to the wheel bearing seal. Check for damage, contamination or missing teeth by rotating the hub slowly and observing the ring. Replace the bearing if damaged.
