Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing support for luggage compartment floor, saloon

Using torque wrench -V.A.G 1783-, this page covers removing the Volkswagen Golf Mk7 saloon luggage compartment floor support on the left side (right is similar) — fold down the rear seat backrest first.

  Note
Removal and installation are described for the left vehicle side. Follow same instructions for the right side as appropriate.
Special tools and workshop equipment required



Torque wrench -V.A.G 1783
Torque wrench -V.A.G 1783
Removing
–  Fold down rear seat backrests.
–  Remove luggage compartment floor towards rear.

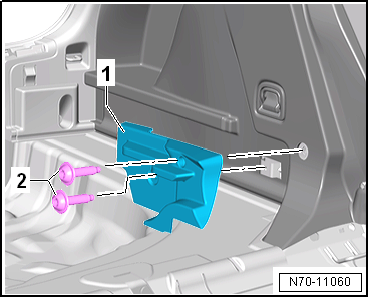

–  Remove bolts -2-.
–  Remove luggage compartment floor covering bracket -1-.
Installing
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - luggage compartment floor“


Torque wrench -V.A.G 1783

    Questions & answers

    Removing and installing support for luggage compartment floor, saloon — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 saloon boot floor support?
    Left side described. Unclip or unbolt the support that holds the variable-height boot floor in its upper or lower position.
