Remove coolant pump
→ Chapter. |
|
|
|
| – |
Remove bolts in the sequence -F … A-. |
| – |
Detach coolant pump from thermostat housing. |
|
|
|
| – |

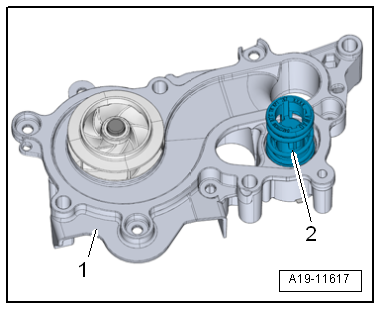

Detach thermostat -2- from
coolant pump -1-. |
| Installation is carried out in the reverse order; note the
following: |
 Note
| – |
Moisten gasket with coolant. |
|
|
|
| – |
Fit thermostat housing onto coolant pump. |

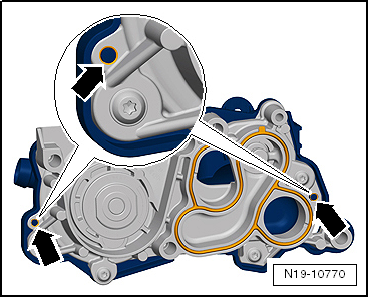

| Centring pins on thermostat must be fitted in guides
-arrows- on coolant pump. |
| – |
Tighten bolts for thermostat housing
→ Fig.. |
| – |
Install coolant pump
→ Chapter. |
| – |
Replenish coolant
→ Anchor. |
| → Fig. „“Thermostat housing to coolant pump - tightening torque
and sequence”“ |
|
|
|
Questions & answers
Removing and installing thermostat for small cooling circuit — Volkswagen Golf Mk7
How do I remove the Golf Mk7 1.4 TSI bypass thermostat?
Drain coolant partially, unbolt the small thermostat housing and extract. Renew gasket.
Special tools and workshop equipment
required
Hose clip pliers -VAS 6362-
...
Special tools and workshop equipment
required
Hose clamps up to 25 mm -3094-
...
