Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear door trim

This assembly overview covers the Volkswagen Golf Mk7 rear door trim on the driver side (passenger side is analogous), including the rear driver-side window regulator button -E711- on equipped vehicles.

  Note
The assembly overview is shown for the rear door trim on driver side. The assembly overview for the front passenger side is analogous.

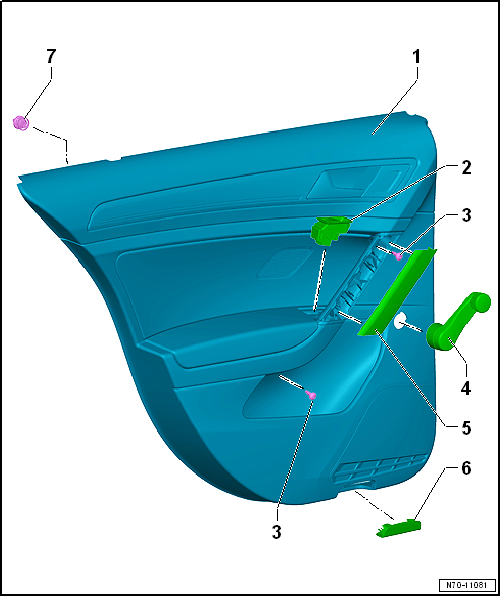

Assembly overview - rear door trim

1 -  Door trim
  • Removing and installing → Chapter
2 -  Rear driver side window regulator button -E711-
  • Only for vehicles with window regulator.
  • Overview of fitting locations → Electrical system; Rep. gr.96
3 -  Bolt
  • Qty. 2
  • 4.5 Nm
4 -  Window winder
  • Only for vehicles with manual window regulator
  • Removing and installing → General body repairs, exterior; Rep. gr.58
5 -  Upper part of handle recess
6 -  Reflector
  • Overview of fitting locations → Electrical system; Rep. gr.96
7 -  Clip
  • Qty. 6
  • Insert into trim
  • Renew any damaged or deformed clips
