Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - accelerator module

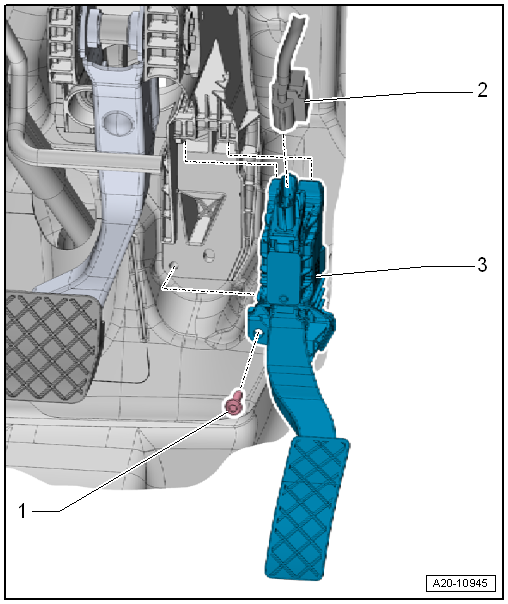

This assembly overview covers the Volkswagen Golf Mk7 accelerator pedal module -GX2-: a 6 Nm bolt, an electrical connector needing confirmed engagement, and the module itself, which includes an accelerator position sender.
| 1 - | Bolt |
| 6 Nm |
| 2 - | Electrical connector |
| Make sure it is engaged properly; pull to check that plug-in connector is correctly engaged |
| 3 - | Accelerator pedal module -GX2- |
| Includes |
| Accelerator position sender -G79- |
| Accelerator position sender 2 -G185- |
| Removing and installing → Chapter. |
Questions & answers
Assembly overview - accelerator module — Volkswagen Golf Mk7
What does the Golf Mk7 accelerator module assembly show?
The electronic accelerator pedal -GX2- with built-in position sensor, mounting bolts and connector.
Removing and installing accelerator module -GX2-
Removing
–
Fold floor covering -1-
forwards in -direction of arrow-.
...
