Volkswagen Golf Mk7 Service & Repair Manual: Radiator fan control unit -J293

This Volkswagen Golf Mk7 control unit -J293- variant, sometimes fitted directly to the radiator fan, switches the compressor's magnetic clutch and controls fan operation.

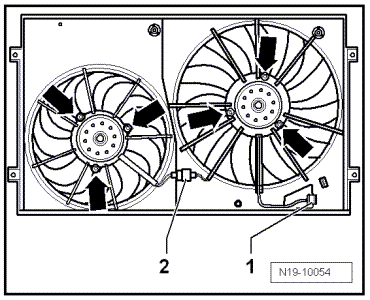

Note Available in various designs, sometimes fitted to the radiator fan -arrows-.

This control unit switches the magnetic clutch and thus the air conditioner compressor on and off. It controls the radiator fan, and for vehicles with high-pressure sender -G65- or refrigerant pressure and temperature sender -G395-, it calculates the pressure in the refrigerant circuit.

Questions & answers

Radiator fan control unit -J293 — Volkswagen Golf Mk7

Are there different Golf Mk7 radiator fan control unit designs?

Yes. Some are separate units; some are fitted directly to the radiator fan motor. Function is the same — controls fan speed and clutch.
