| Special tools and workshop equipment
required |
|
|
|
| |
Torque wrench -V.A.G 1783- |
| – |
Remove dash panel end cover on front passenger side
→ Chapter. |
| – |
Remove front passenger side footwell cover
→ Chapter. |
| – |
Remove centre console cover on front passenger side
→ Chapter. |
| – |
If fitted, remove control unit 1 for information electronics
-J794-
→ Communication; Rep. gr.91. |
|
|
|
| – |

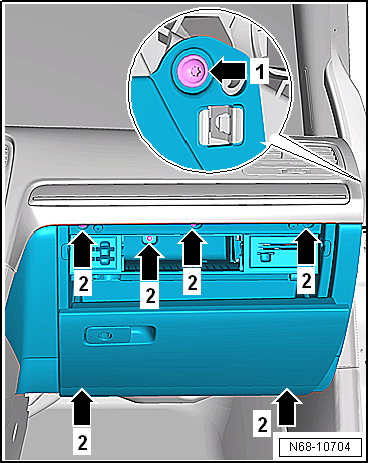

Unscrew bolt -arrow 1- at side. |
| – |
Open glove compartment lid and unscrew bolts
-arrows 2-. |
| – |
Unclip glove compartment from dash panel and pull it out
until glove compartment cooling hose can be accessed. |
| – |
Pull glove compartment cooling hose off glove compartment. |
| – |
Disconnect any electrical connectors from glove compartment,
move cable guides clear to one side and remove glove
compartment. |
 Note
| Before installing, check all fasteners for damage and renew
if necessary. |
| Installation is carried out in reverse order. |
| |
→ Chapter „Assembly overview - glove compartment“ |
|
|
|
