 Note

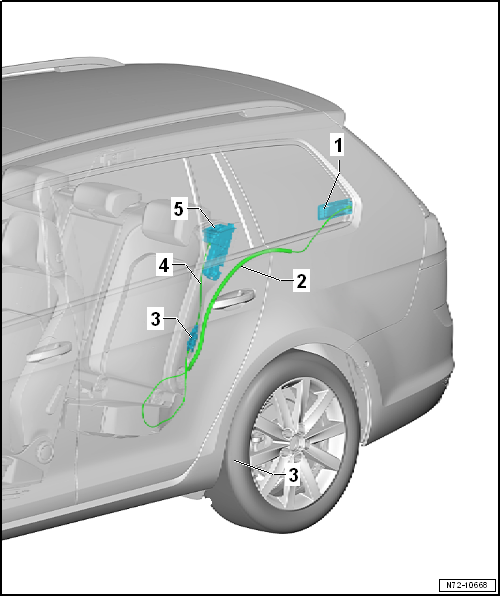

| The illustration shows the remote release mechanism for
seat backrest on the left side. The right-hand side is similar
(mirror image of left-hand side). |
|
|
|
| 1 - |
Remote backrest release mechanism |
- Removing and installing
→ Chapter
| 2 - |
Bowden cable on vehicle end |
- Removing and installing
→ Chapter
- Separating and connecting Bowden cable for remote release mechanism for
seat backrest
→ Chapter
| 4 - |
Bowden cable on backrest end |
- Removing and installing
→ Chapter
| 5 - |
Locking mechanism for rear seat backrest |
- Removing and installing
→ Chapter
