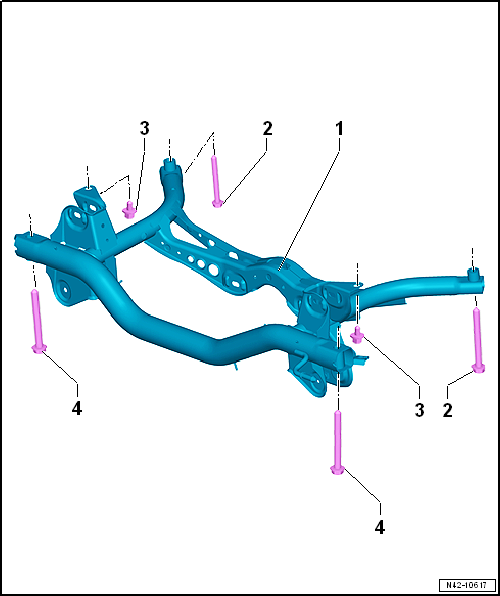

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - subframe, multi-link suspension, front-wheel drive, except for e-Golf
This assembly overview covers the FWD Volkswagen Golf Mk7 multi-link rear subframe: bolts torqued to 70 Nm plus 180° and 50 Nm plus 45°, all always renewed after removal.
| 1 - | Subframe |
| Removing and installing subframe with attachments → Chapter |
| 2 - | Bolt |
| Renew after removing |
| 70 Nm +180° |
| 3 - | Bolt |
| Renew after removing |
| 50 Nm +45° |
| 4 - | Bolt |
| Renew after removing |
| 70 Nm +180° |
