Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing rear belt guide

This page covers removing the Volkswagen Golf Mk7 estate rear belt guide — remove the luggage compartment side trim, then unscrew the two retaining bolts.

Removing –  Remove luggage compartment side trim, estate → Chapter.

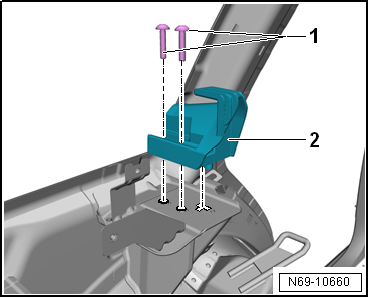

–  Unscrew the 2 bolts -1-, and remove belt guide -2-. Installing Installation is carried out in reverse order.   Note Observe correct installation position of the belt guide when installing. Specified torques   → Chapter „Assembly overview - three-point seat belt, estate, without belt tensioner“   → Chapter „Assembly overview - three-point seat belt, estate, with belt tensioner“

Questions & answers

Removing and installing rear belt guide — Volkswagen Golf Mk7

How do I remove the Golf Mk7 rear belt guide (estate)?

Remove luggage side trim, unscrew the 2 bolts and remove the belt guide.
