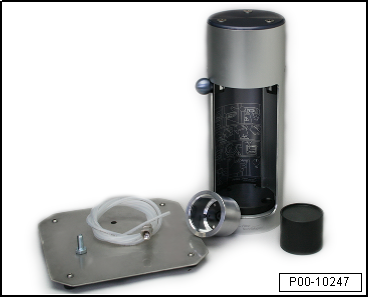

| Spray can filling device -VAS 6425- |
| The spray can filling device is a pneumatic filling device
for filling paint spray cans with premixed base coats and top
coats without the need for cleaning. The device is suitable for
filling 1-pack fill clean spray cans -LLS MAX 100-, which can be
ordered via
→ ETKA (Electronic Parts Catalogue). |
| Filling cylinder: diameter 135 mm, height 65 mm, max. fill
volume 100 ml |
| Support base dimensions: 250 x 250 x 2 mm |
| Pneumatic filling principle |
| Filling pressure: 8-10 bar / 100-130 psi |
| Bursting point: approx. 60 bar /approx. 870 psi |
| Operating temperature: +5 °C to +50 °C |
| Spray can filling device including metal cylinder |
| Compressed air hose including coupling |
| Securing bolt with washer |
|
|
|
Questions & answers
Spray can filling device -VAS 6425 — Volkswagen Golf Mk7
What is the spray can filling device -VAS 6425-?
A pneumatic device that fills empty aerosol cans with mixed paint, enabling spray-can application of colour-matched paint for small repairs.
