Remove door trim
→ General body repairs, interior; Rep. gr.70. |
| – |
Remove window slot seal
→ Chapter. |
| – |
Remove window channel
→ Chapter. |
| – |

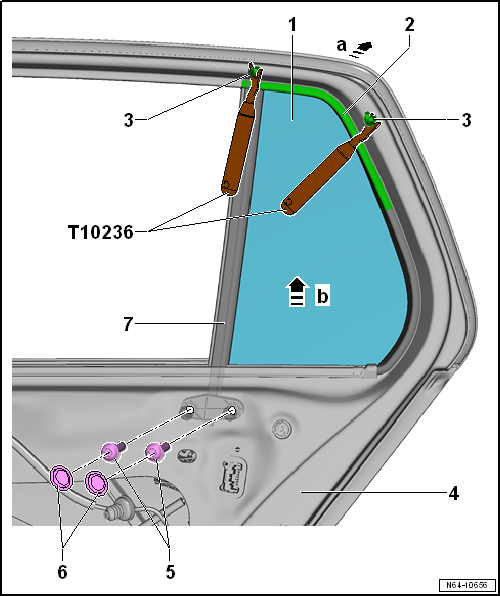

Lift out cover caps -6-. |
| – |
Pull seal -2- off metal flange. |
| – |
Guide release tool -T10236- one after the other under both clips
-3-. |
| – |
When doing this, push door window -1-
slightly outwards -arrow a- until clips
-7- are pushed out of door
-4-. |
| – |
Then pull door window -1- with web
-7- upwards -arrow b-
out of door -4-. |
| – |

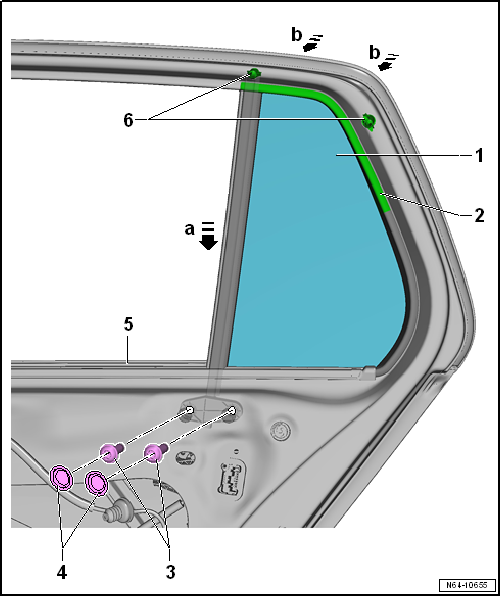

Slide door window -1- into door
-arrow a-. |
| – |
Push door window against door -5- until
clips -6- engage audibly
-arrows b-. |
| – |
Pull seal -2- around flange. |
| |
Fixed rear door window
→ Chapter „Assembly overview |
Questions & answers
Removing and installing fixed rear door window — Volkswagen Golf Mk7
How do I remove the Golf Mk7 fixed rear quarter window?
Remove the door trim, window slot seal and window channel, lift out the cover caps, unbolt the two screws (6 Nm) and pull the window with its integral seal out of the door.
Removing
–
Remove rear door trim
→ General body repairs, interior; Rep. gr.70.
...
