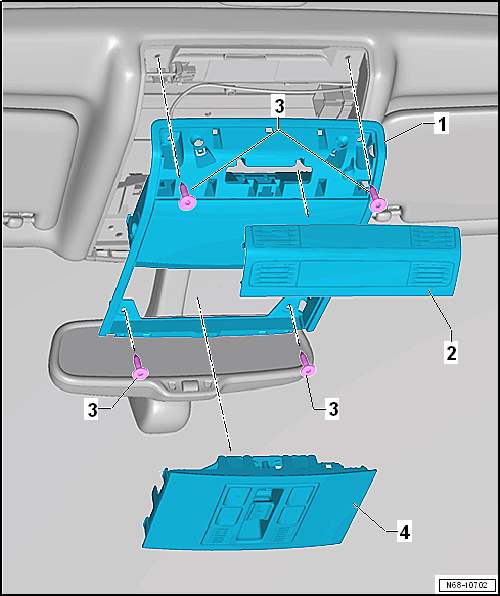

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - storage compartment in roof headliner
This assembly overview covers the Volkswagen Golf Mk7 roof headliner storage compartment: its cover, four 1.5 Nm bolts, and the adjacent front interior light -WX1-.
| 1 - | Storage compartment |
- Removing and installing → Chapter
| 2 - | Cover |
| 3 - | Bolt |
- Qty. 4
- 1.5 Nm
| 4 - | Front interior light -WX1- |
- Overview of fitting locations → Electrical system; Rep. gr.96.
