 Note
| There are different designs and makes of heater and air
conditioning unit. The individual components of the various
heaters and air conditioning units are similar but not
identical. The combined fitting of different makes of component
is therefore not permissible
→ Electronic Parts Catalogue. |

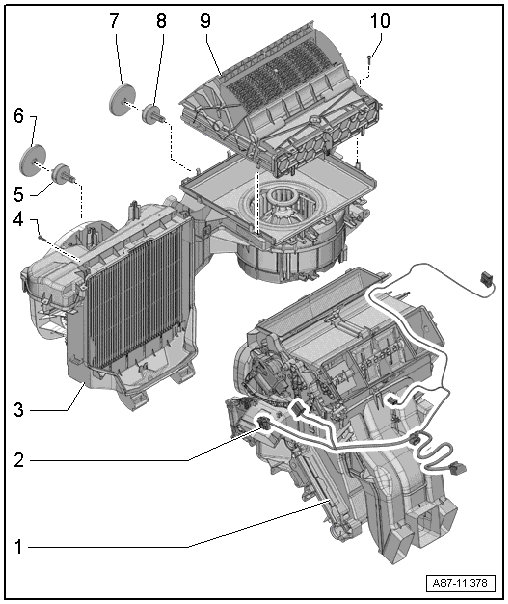

| The following illustrations show a “Valeo” heater/air
conditioning unit, distinguishing features with respect to other
makes
→ Chapter. |
Note
| The illustration shows a left-hand drive vehicle.
Dismantling and assembling is basically identical. |
|
|
|
| 1 - |
Air distribution housing |
| The combined fitting of different makes of component is not
permissible
|
| The following illustrations show the heater unit from “Valeo”. |
| Depending on vehicle equipment with or without auxiliary air heater
element -Z35- with auxiliary air heater control unit -J604-. |
| Distinguishing makes
→ Chapter. |
| Different versions. Refer to
→ Electronic Parts Catalogue. |
Note
| On vehicles without air conditioning system, a flow rate limiter is
fitted in place of the evaporator. |
| For heater and air conditioning unit |
| Removing and installing
→ Chapter. |
| For heater and air conditioning unit |
| Removing and installing
→ Chapter. |
| Different versions. Refer to
→ Electronic Parts Catalogue. |
Questions & answers
Dismantling and assembling heater and air conditioning unit — Volkswagen Golf Mk7
Can the Golf Mk7 heater/AC unit be split without extracting refrigerant?
The heating side can be dismantled without opening the refrigerant circuit. Valeo/Denso components must not be mixed.
Special tools and workshop equipment
required
Torque wrench -V.A.G 1331/- (5…50 Nm)
& ...
Note
The illustration shows a left-hand drive vehicle. The
removal and installation procedure is identical for both
versions.
...
