Volkswagen Golf Mk7 Service & Repair Manual: Separating cover and padding for rear bench seat

Using upholstery clip pliers -V.A.G 1634-, this page covers separating the Volkswagen Golf Mk7 rear bench seat cover from its padding — pull the cover as far as possible off the padding, then cut through the upholstery clips.

Special tools and workshop equipment required



Upholstery clip pliers -V.A.G 1634
Upholstery clip pliers -V.A.G 1634
Removing
–  Remove cover and padding for rear bench seat → Chapter.

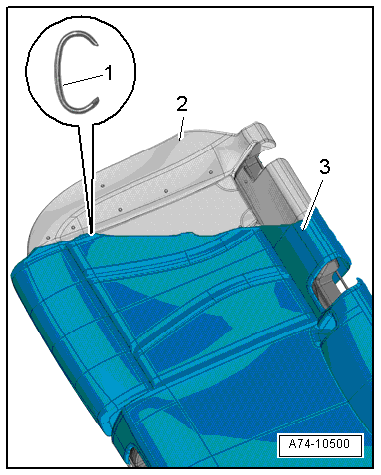

–  Pull seat cover -3- as far as possible off seat padding -2-.
–  Cut through upholstery clips -1- using pliers.
–  Separate seat cover from seat padding.
Installing
Install in reverse order, but note the following:
–  After installation, check that there are no creases in the seat cover.


Separating cover and padding for rear bench seat

    Questions & answers

    Separating cover and padding for rear bench seat — Volkswagen Golf Mk7

    How do I separate the Golf Mk7 rear bench seat cover from its padding?
    Use upholstery clip pliers -V.A.G 1634-. Open hog rings and release the cover from the padding foam.
