Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - rear child seat anchors

This assembly overview covers the Volkswagen Golf Mk7's four ISOFIX child seat anchors welded to the underbody, each with its own guide and lid that must seat firmly on the anchor.

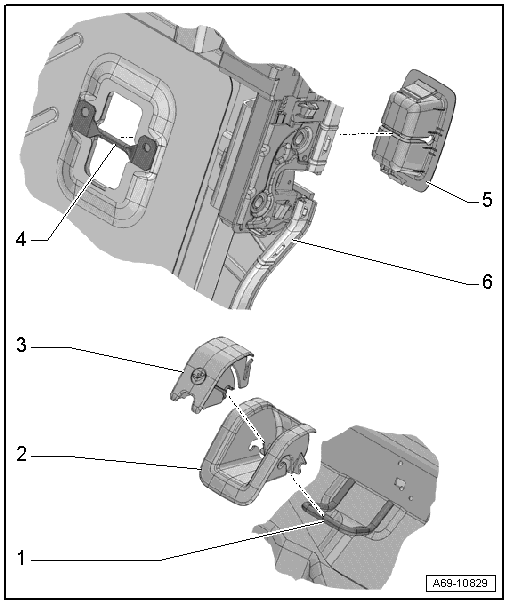

Assembly overview - rear child seat anchors

1 -  ISOFIX child seat anchor
  • Qty. 4
  • Welded to underbody
2 -  Guide
  • For ISOFIX child seat anchor
  • Qty. 4
  • Removing and installing → Chapter
  • Must be seated firmly on child seat anchor
3 -  Lid
  • For ISOFIX child seat anchor
  • Qty. 4
  • Removing and installing → Chapter
  • Must be seated firmly on child seat anchor
4 -  Top Tether child seat anchor
  • Qty. 2
  • Welded to backrest frame
5 -  Cover
  • For Top Tether child seat anchor
  • Qty. 2
  • Removing and installing → Chapter
  • Attach to child seat anchor and push it in until it audibly engages
  • Can only be fitted on rear seat backrest in a specific position
6 -  Rear seat backrest

    Questions & answers

    Assembly overview - rear child seat anchors — Volkswagen Golf Mk7

    What does the Golf Mk7 child seat anchor assembly show?
    4 ISOFIX anchors welded to the underbody, 4 guides, and Top Tether anchor brackets on the rear seat frame.
    Child seat anchors
    ...

    Removing and installing guide for ISOFIX child seat anchor
    Removing –  Unclip cover -1- from ISOFIX child seat anchor -arrow- and remove it.   ...
