Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - track rod, multi-link suspension, four-wheel drive

This assembly overview covers the 4MOTION Volkswagen Golf Mk7 rear track rod — the same 70 Nm plus 180° bolt torque as the FWD variant.

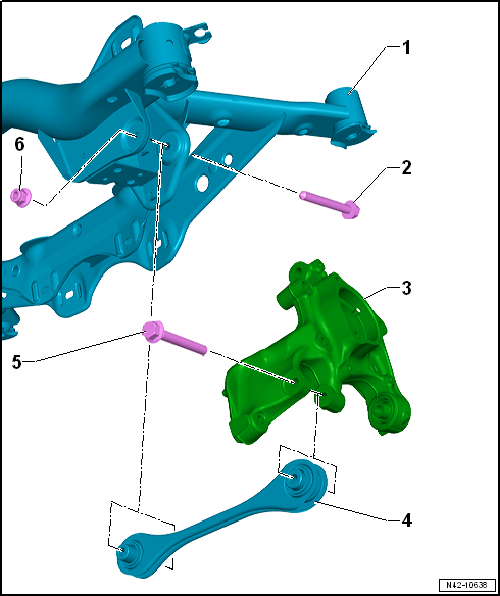

Assembly overview - track rod, multi-link suspension, four-wheel drive

1 -

Subframe

2 -

Bolt

Renew after removing

70 Nm +180°

3 -	Wheel bearing housing

4 -

Track rod

Removing and installing → Chapter

5 -

Bolt

Renew after removing

Always tighten threaded connections in unladen position → Chapter

70 Nm +180°

6 -

Nut

Renew after removing

70 Nm +180°
