Volkswagen Golf Mk7 Service & Repair Manual: Dimensions – lettering on wing, “R”
This page gives the exact placement dimensions for the R wing emblem — 5.0 ± 1 mm from the upper edge to the wing edge, and 1.5 ± 1 mm from the wing's outer edge to the lettering.

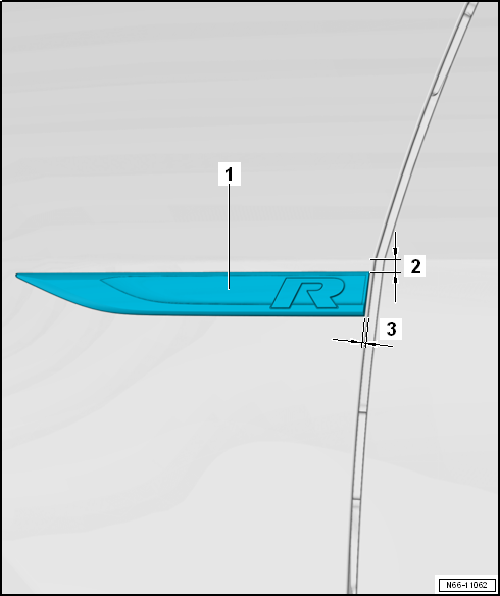

| 1 - | Emblem |
| 2 - | Height dimension |
- 5.0 ± 1 mm, from upper edge of lettering to edge of wing
| 3 - | Horizontal dimension |
- 1.5 ± 1 mm, from outer edge of wing to lettering
