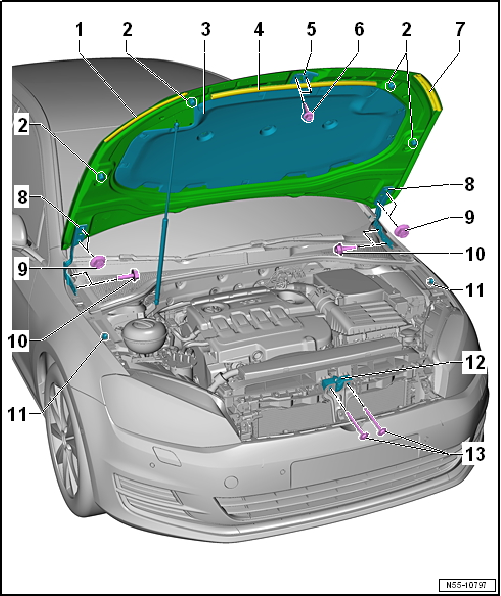

Assembly overview - bonnet

1 -  Bonnet
  • Removing and installing → Chapter
  • Adjusting → Chapter
2 -  Adjustment buffer
  • Qty. 2
3 -  Insulation
  • Removing and installing → Chapter
4 -  Seal in centre
5 -  Striker pin
  • Removing and installing → Chapter
6 -  Bolt
  • Qty. 2
  • 12 Nm
7 -  Seal on side
  • Left and right
8 -  Hinge
  • Removing and installing → Chapter
9 -  Hexagon nut
  • For securing bonnet
  • Qty. 2 on each side
  • 22 Nm
10 -  Bolt
  • For securing hinge
  • Qty. 2 on each side
  • 22 Nm
11 -  Protective film
  • For adjustment buffer.
12 -  Bonnet lock
  • Removing and installing → Chapter
13 -  Bolt
  • Qty. 2
  • 12 Nm
