Volkswagen Golf Mk7 Service & Repair Manual: Identification

This page decodes the Volkswagen Golf Mk7 DSG gearbox identification plate: gearbox code, production date, factory code, production time and serial number — the reference needed for ordering correct spare parts.

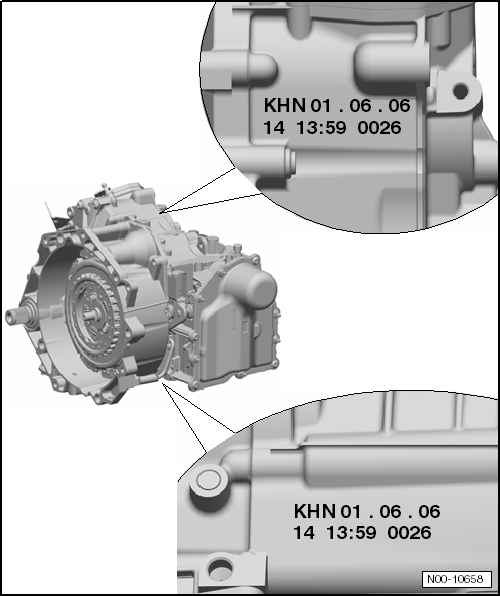

Gearbox identification

The following information is indicated on the gearbox (example):

KHN = Gearbox code

01.06.06 = Production date

14 = Factory code

13:59 = Production time

0026 = Serial number



Note The gearbox code also appears on the vehicle data stickers.

Questions & answers

Identification — Volkswagen Golf Mk7

How do I identify the Golf Mk7 DSG gearbox?

The gearbox code (e.g. KHN), date of manufacture and serial number are stamped on the gearbox housing.

Safety precautions when using test and measuring equipment during a road test

Observe the following if test and measuring equipment is required during a road test:   WARNING Acciden ...
