| Special tools and workshop equipment
required |
|
|
|
 Note
| Removal and installation are described for the left
vehicle side. Follow same instructions for the right side as
appropriate. |
|
|
|
| – |

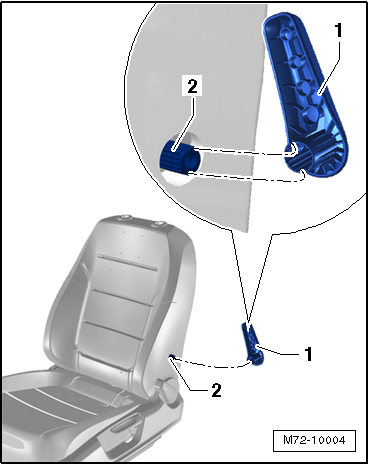

Pull lumbar support adjusting lever
-1- off shaft -2- using
removing pliers -3392-. |
|
|
|
| Install in reverse order, but note the following: |
| – |
Ensure that teeth on lumbar adjusting lever
-1- align with shaft splines
-2-. |
| – |
Pull on lever to ensure it is firmly seated. |
| – |
If adjusting lever is too loose following assembly, it must
be renewed. |
| |
→ Chapter „Assembly overview - front backrest“ |
|
|
|
