Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - clutch engagement

This assembly overview covers the Volkswagen Golf Mk7 DSG clutch engagement: the shim for "K1", the large engaging lever with its engagement bearing, and the hinge mounting for "K1", which cannot be renewed separately.

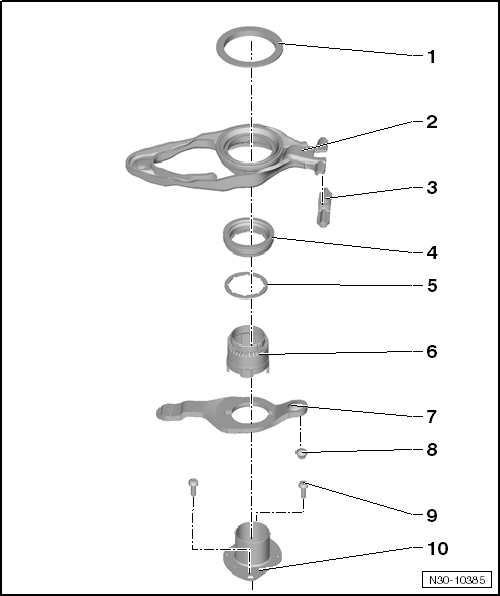

Assembly overview - clutch engagement

1 -  Shim for “K 1”
Determining thickness → Chapter.
2 -  Large engaging lever for “K 1”
With engagement bearing
Removing and installing → Chapter
3 -  Hinge mounting
For large engaging lever “K 1”
Cannot be renewed.
4 -  Small engagement bearings for “K 2”
5 -  Shim for “K 2”
Determining thickness → Chapter.
6 -  Upper section of bushing
For small engaging lever “K 2”
Is removed and installed together with small engaging lever and lower section of bushing
7 -  Small engaging lever for “K 2”
Is removed and installed together with upper and lower section of bushing
Removing and installing → Chapter
8 -  Ball pin
For small engaging lever “K 2”
Removing and installing → Anchor
9 -  Bolt
Always renew after removing.
8 Nm +90°
10 -  Lower section of bushing
For small engaging lever “K 2”
Is removed and installed together with small engaging lever and upper section of bushing
