Using removal wedge -3409- and the vehicle diagnostic tester, this page covers removing the Volkswagen Golf Mk7 footwell vent temperature sender -G192- — Note: fitted only on Climatronic models.
| Special tools and workshop equipment
required |
|
|
|
| Vehicle diagnostic tester |
 Note
| Only on vehicles with Climatronic. On vehicles with heater
or air conditioning system with electric/manual controls, the
apertures in the air ducts are sealed with plugs. |
| – |
Remove footwell vent on driver side
→ Chapter. |
|
|
|
| – |

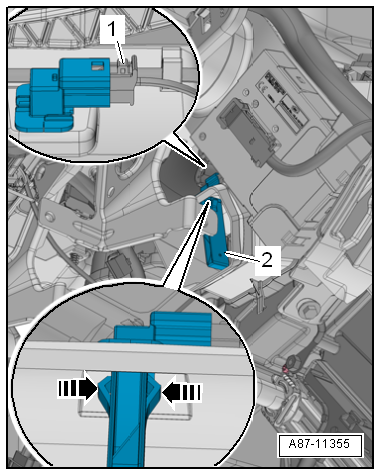

Slightly lift footwell vent temperature sender -G192--2-. |
| – |
Release retaining tabs -arrows-
using removal wedge -3409-. |
| – |
Pull out footwell vent temperature sender -G192--2-
upwards. |
| – |
Disconnect electrical connector -1-. |
| – |
Install in reverse order. |
|
|
|
