Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing wing

This page gives the full removal and installation procedure for the Volkswagen Golf Mk7 front wing using torque wrench -V.A.G 1783-, described for the left side (the right side is a mirror procedure) — starting with removing the wheel housing liner and front bumper cover.

Special tools and workshop equipment required




Torque wrench -V.A.G 1783-
Torque wrench -V.A.G 1783-
Removing
  Note
Removal and installation are described only for the left wing. Removal and installation of the right wing are similar.

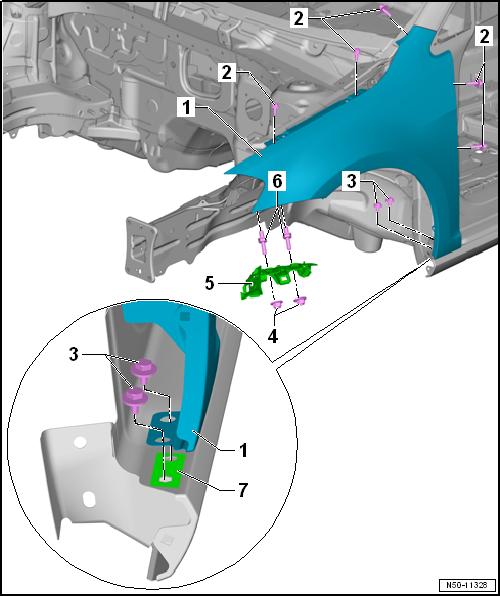

Removing and installing wing

–  Remove front wheel housing liner → Chapter.
–  Remove front bumper cover → Chapter.
–  Remove headlights → Vehicle electrics; Rep. gr.94
–  Removing left plenum chamber cover → Chapter.
–  Remove water deflector → Chapter.
–  Unscrew hexagon nut -4- and remove guide bracket -5-.
–  Wing insulation → Item.
–  Remove insulation for rib section → Item.
–  Remove centre hex studs -6-.
–  Remove bolts -2- and -3-
–  Remove wing -1- carefully.
  Note
The zinc intermediate piece -AKL 381 035 50--7- (if there is one) will be damaged during removal.

Installing

  Note
Install wing -1- without subjecting it to tensile stress.

Removing and installing wing

Install in the reverse order of removal observing the following:
–  Wing is aligned free of stress with wing bracket loosened → Chapter.
–  Always insert zinc intermediate piece -AKL 381 035 50--7- between wing and side member.
–  Ensure joints are parallel and shut lines are equal → Rep. gr.00.
Specified torques
  Wing → Chapter „Assembly overview - wing“

    Questions & answers

    Removing and installing wing — Volkswagen Golf Mk7

    How do I remove the Golf Mk7 front wing?
    Remove the front wheel arch liner, disconnect the side repeater wiring, unbolt the wing from the A-pillar, side member and inner wing bracket, and lift the panel off.
    What torque should the Golf Mk7 wing bolts be tightened to?
    The manual specifies 6 Nm for wing mounting bolts. Use a calibrated torque wrench — overtightening can crack the wing or strip the threads.
    Is the Golf Mk7 wing removal procedure the same for left and right?
    Yes. The manual describes the left side; the right side is a mirror image of the same steps.
