| Only vehicles with a dual clutch gearbox |
| Special tools and workshop equipment
required |
|
|
|
| – |
Remove gearbox
→ Rep. gr.34. |
| – |

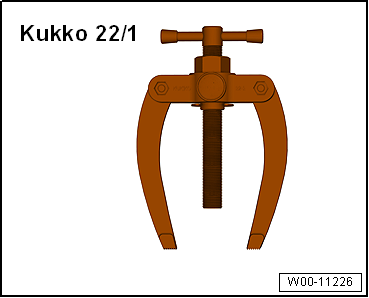

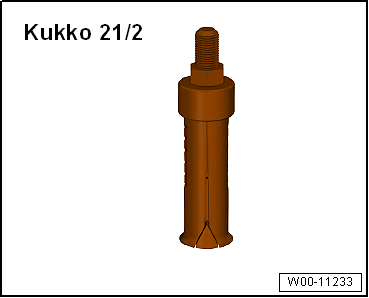

Pull out needle bearing using commercially available puller,
e.g. Kukko -21/2- and Adapter Kukko -22/1-. |
|
|
|
| – |

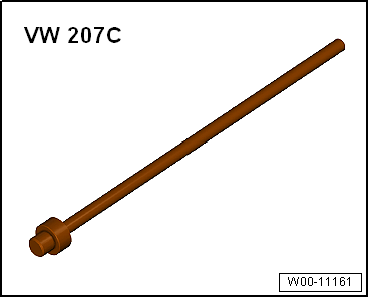

Drive in flush with drift -VW 207 C- or centring mandrel
-3176-. |
| – |
Install gearbox
→ Rep. gr.34. |
|
|
|
Questions & answers
Renewing needle bearing in crankshaft — Volkswagen Golf Mk7
How do I renew the Golf Mk7 1.4 TSI crankshaft needle bearing?
Extract with an internal puller and press the new bearing in. The bearing supports the gearbox input shaft pilot.
Risk of damage to bearing pedestals when the
crankshaft is removed.If the bolts of the crankshaft bearing cap are
loosened, the bearing pedestals of the cylinder block will be deformed, ...
