Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - door components

This assembly overview maps every internal component of the Volkswagen Golf Mk7 front door (left side shown; right is similar), including the 28 mm diameter sticker position and the self-adhesive insulation panel fitted behind the door skin.

  Note
Only the left side is shown. The right side is similar.

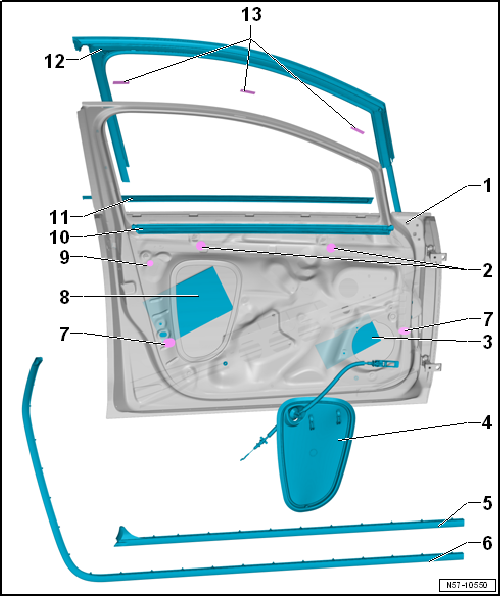

Assembly overview - door components

1 -  Front door
  • Removing and installing → Chapter
  • Adjusting → Chapter
2 -  Sticker
  • Diameter 28 mm
  • If necessary, manufacture using commercially available textile adhesive tape
3 -  Insulation
  • Self-adhesive
  • Installing
–  If necessary, cut to dimension, 200 mm x 100 mm. Position as shown in illustration.
–  Warm using hot air blower -V.A.G 1416- and push on to outer door panel with force.
4 -  Inner door cover
  • Removing and installing → Chapter
5 -  Door joint seal
  • For 4-door model
  • Removing and installing → Chapter
6 -  Door joint seal
  • For 2-door model
  • Removing and installing → Chapter
7 -  Sticker
  • Diameter 32 mm.
  • If necessary, manufacture using commercially available textile adhesive tape
8 -  Insulation
  • Self-adhesive
  • Installing
–  If necessary, cut to dimension, 250 mm x 160 mm. Position as shown in illustration.
–  Warm using hot air blower -V.A.G 1416- and push on to outer door panel with force.
9 -  Sticker
  • Diameter 19 mm
  • If necessary, manufacture using commercially available textile adhesive tape
10 -  Inner window slot seal
  • Removing and installing → Chapter
11 -  Outer window slot seal
  • Removing and installing → Chapter.
12 -  Window channel
  • Removing and installing → Chapter.
13 -  Sticker
  • Qty. 3 for 4-door model
  • Qty. 4 for 2-door model
  • 15 mm x 50 mm
  • If necessary, manufacture using commercially available textile adhesive tape.
