Volkswagen Golf Mk7 Service & Repair Manual: Overview of fitting locations - seat belts and anchorage points, 2-door model

This overview maps every seat belt component and anchorage point on the 2-door Volkswagen Golf Mk7: front belt buckles, belt end anchors, and the front three-point belt with its tensioner igniter -N-.

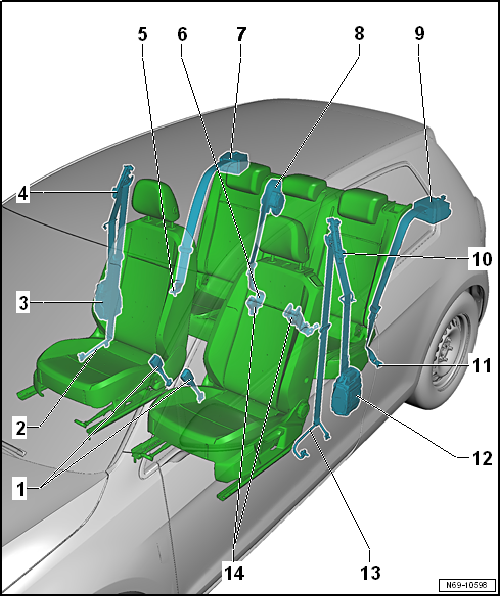

Overview of fitting locations - seat belts and anchorage points, 2-door model

1 -  Front belt buckles
  • Assembly overview → Chapter.
  • Removing and installing → Chapter
2 -  Front belt end anchor
  • Assembly overview → Chapter
  • Removing and installing → Chapter
3 -  Front three-point seat belt
  • With front passenger seat belt tensioner igniter 1 -N154- and control unit for front right belt tensioner -J855-
  • Assembly overview → Chapter
  • Removing and installing → Chapter
4 -  Belt height adjustment
  • Assembly overview → Chapter
  • Removing and installing → Chapter
5 -  Rear outer belt end fitting
  • Assembly overview → Chapter
  • Removing and installing → Chapter
6 -  Rear centre belt end fitting
  • Assembly overview → Chapter
  • Removing and installing → Chapter
7 -  Belt inertia reel
  • For rear outer three-point seat belt
  • Assembly overview → Chapter
  • Removing and installing → Chapter
8 -  Belt inertia reel
  • For rear centre three-point seat belt
  • Assembly overview → Chapter
  • Removing and installing → Chapter
9 -  Belt inertia reel
  • For rear outer three-point seat belt.
  • Assembly overview → Chapter
  • Removing and installing → Chapter
10 -  Belt height adjustment
  • Assembly overview → Chapter
  • Removing and installing → Chapter
11 -  Rear outer belt end fitting
  • Assembly overview → Chapter.
  • Removing and installing → Chapter
12 -  Belt inertia reel
  • For front three-point seat belt
  • With driver seat belt tensioner igniter 1 -N153- and control unit for front left belt tensioner -J854
  • Assembly overview → Chapter
  • Removing and installing → Chapter
13 -  Front belt end anchor
  • Assembly overview → Chapter
  • Removing and installing → Chapter
14 -  Rear belt buckle
  • Assembly overview → Chapter
  • Removing and installing → Chapter

    Questions & answers

    Overview of fitting locations - seat belts and anchorage points, 2-door model — Volkswagen Golf Mk7

    What does the Golf Mk7 2-door seat belt fitting overview show?
    Positions of front belt buckles, front belt end anchors, front inertia reels, rear inertia reels, rear belt buckles, belt height adjusters and rear outer belt guides.
