Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview – underbody covers, e-Golf

This assembly overview covers the e-Golf-specific underbody covers: noise insulation, front, centre (left and right) and rear covers — a different layout from the petrol/diesel model to accommodate the HV battery.

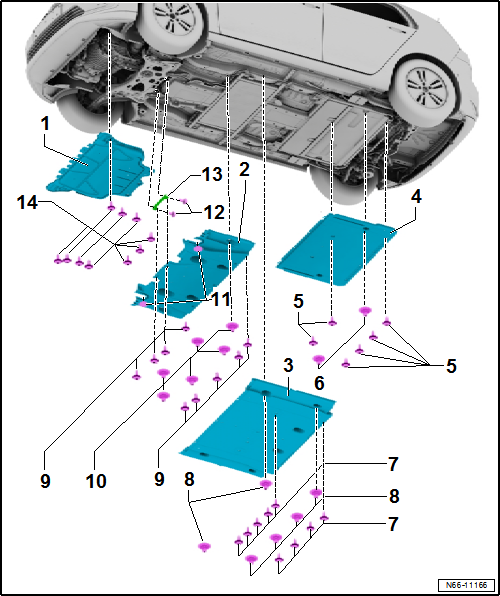

Assembly overview – underbody covers, e-Golf

1 -  Noise insulation
  • Removing and installing
2 -  Front underbody cover
  • Removing and installing → Chapter
3 -  Centre underbody cover
  • Left and right
  • Removing and installing → Chapter
4 -  Rear underbody cover
  • Removing and installing → Chapter
5 -  Bolt
For rear underbody cover
  • Qty. 6.
  • 2 Nm
6 -  Hexagon nut
For rear underbody cover
  • Qty. 2.
  • 2.0 Nm
7 -  Bolt
For centre underbody cover
  • Qty. 9.
  • 2 Nm
8 -  Hexagon nut
For centre underbody cover
  • Qty. 6.
  • 2.0 Nm
9 -  Bolt
For front underbody cover
  • Qty. 9
  • 2 Nm
10 -  Hexagon nut
For front underbody cover
  • Qty. 6
  • 2.0 Nm
11 -  Caps
  • Qty. 2.
12 -  Bolt
For bracket
  • Qty. 2
  • 6 Nm
13 -  Bracket
14 -  Bolt
For noise insulation
  • Qty. 10.
  • 2 Nm
