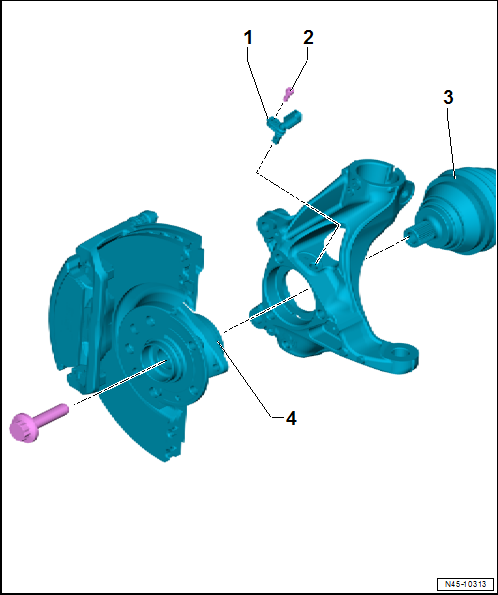

Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - speed sensor on front axle
This assembly overview covers the Volkswagen Golf Mk7 front ABS speed sensor: clean the mounting hole's inside surface and coat it with high-temperature paste -G 052 112 A3- before inserting, with an 8 Nm bolt.
| 1 - | ABS speed sensor |
| Clean inside surface of hole before inserting sensor |
| Coat inside surface with high-temperature paste -G 052 112 A3- |
| Removing and installing → Chapter |
| 2 - | Bolt |
| 8 Nm |
| 3 - | Drive shaft |
| Assembly overview → Running gear, axles, steering; Rep. gr.40. |
| Removing and installing → Running gear, axles, steering; Rep. gr.40. |
| 4 - | Wheel hub with wheel bearing unit |
| The ABS sensor ring is integrated in the wheel bearing unit. |
| Check ABS sensor ring → Chapter |
| Removing and installing → Running gear, axles, steering; Rep. gr.40. |
