Volkswagen Golf Mk7 Service & Repair Manual: Assembly overview - anti-roll bar, multi-link suspension, four-wheel drive

This assembly overview covers the 4MOTION Volkswagen Golf Mk7 rear anti-roll bar — the same 20 Nm plus 180° nut torque and coupling rod arrangement as the FWD variant.

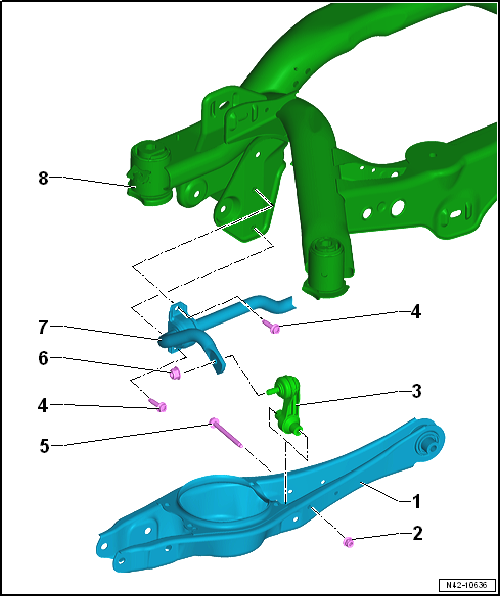

Assembly overview - anti-roll bar, multi-link suspension, four-wheel drive

1 -  Lower transverse link
2 -  Nut
Renew after removing
20 Nm +180°
3 -  Coupling rod
Removing and installing → Chapter
4 -  Bolt
Tighten evenly.
Renew after removing
20 Nm +90°
5 -  Bolt
Renew after removing
6 -  Nut
When tightening, counterhold at multi-point socket of coupling rod
55 Nm
7 -  Anti-roll bar
With rubber bushes
Removing and installing → Chapter
8 -  Subframe
