Volkswagen Golf Mk7 Service & Repair Manual: Removing and installing actuator
This page covers removing the e-Golf charging bay flap actuator — remove the radiator grille first, then unbolt the actuator directly from its mounting.
|
| – | Removing radiator grille → Chapter |

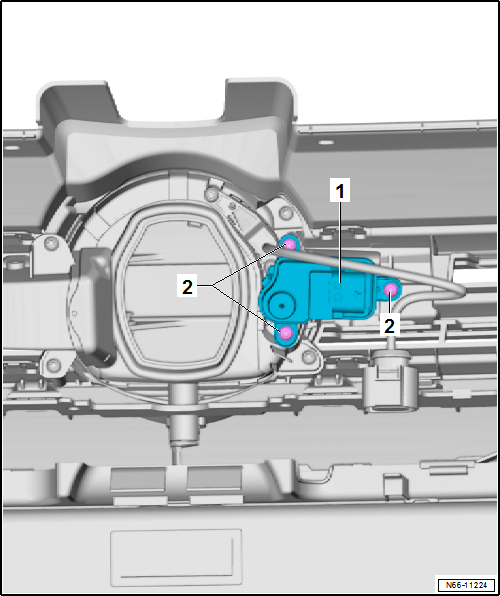

| – | Remove bolts -2-. |
| – | Remove actuator -1-. |
|
Questions & answers
Removing and installing actuator — Volkswagen Golf Mk7
How do I remove the Golf Mk7 charging bay actuator?
Remove the radiator grille, unbolt the actuator (2 Nm), and remove. Installation is the reverse.
